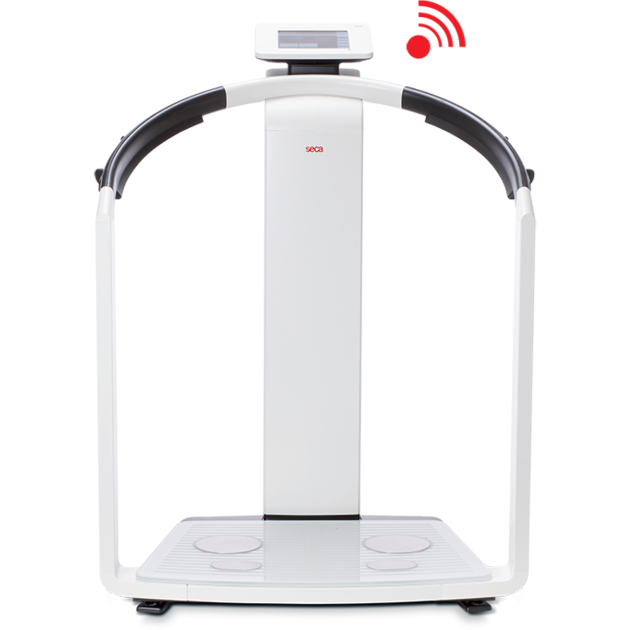

seca mBCA 515 Body Composition Analyzer

Clinically accurate, precise, and beneficial. The medical Body Composition Analyzer (mBCA) by seca divides weight into medically significant components, including Fat Mass, Fat-Free Mass, Body Water (comprising extracellular and intracellular water), and Skeletal Muscle Mass.

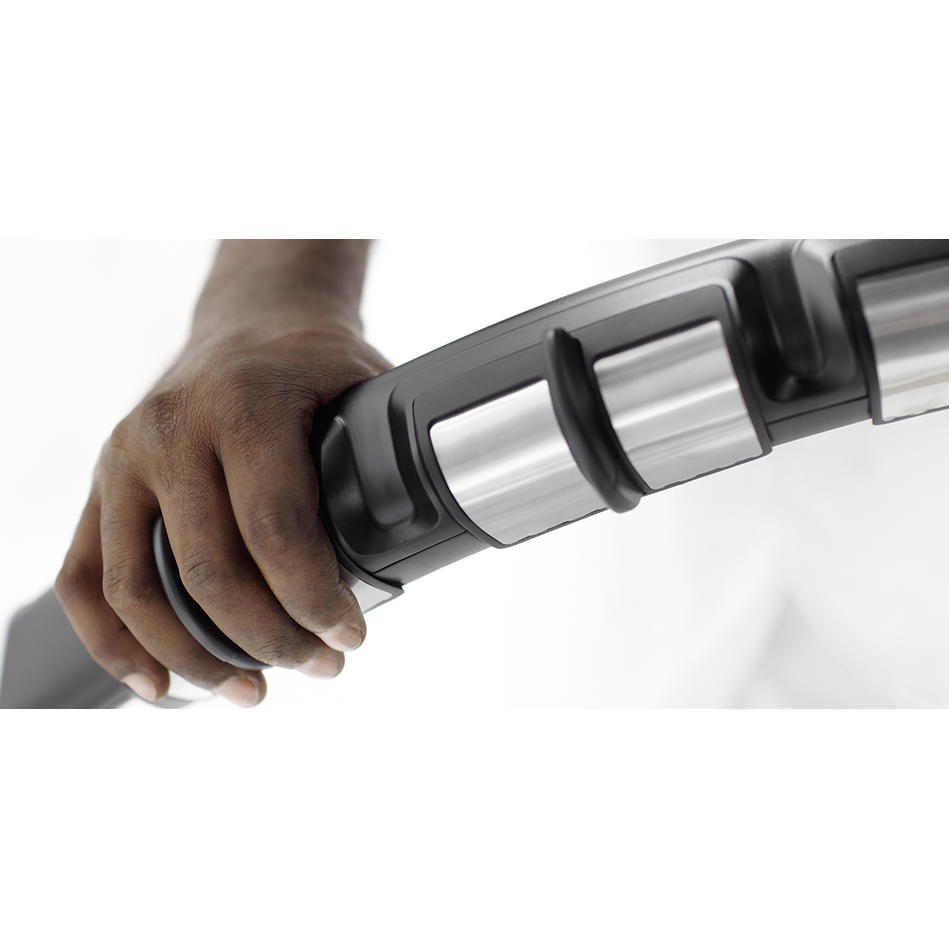

Data is analyzed through six modules and displayed in clear and comprehensible graphics. Seca has performed validation studies comparing its results with the scientific benchmark. This precision is integrated into the device, such as the standing aid feature, which ensures the subject is always measured correctly, and the hand-held electrodes that eliminate measurement errors. The large glass platform is capable of supporting patients up to 300 kilograms.

Additional benefits include a quick measurement time of under 20 seconds and user-friendly navigation via the touch-screen display. In summary, the seca mBCA is an excellent tool for diagnosing various conditions like obesity, diabetes, or malnutrition.

• Capacity: 300 kg
• Division: 50 g
• Calibration class: III
• Medical Device class: IIa
• Dimensions (WxHxD): 984 x 1209 x 850 mm
• Display type: 8.4" touch-screen display, rotatable 360°
• Interfaces: 360° wireless, USB 2.0, Ethernet
• Measurement method: 8-point bioelectrical impedance analysis
• Measurement current: 100 µA
• Measurement time, normal mode: max. 20 seconds
• FREE DEMO AND INSTALLATION

The six analytical modules of the seca mBCA 515 provide extensive diagnostic capabilities. With accurate ratios like fat mass to weight or extracellular to intracellular water, doctors can now identify medical issues that were previously challenging to diagnose without further tests. Another key benefit is the graphical representation of results, which helps patients understand their diagnosis.

The six modules in the seca mBCA 515:

• Energy
• Fluid
• Function/Rehabilitation
• Development/Growth
• Health risk
• Raw impedance data

Automatic electrode detection
The seca mBCA
