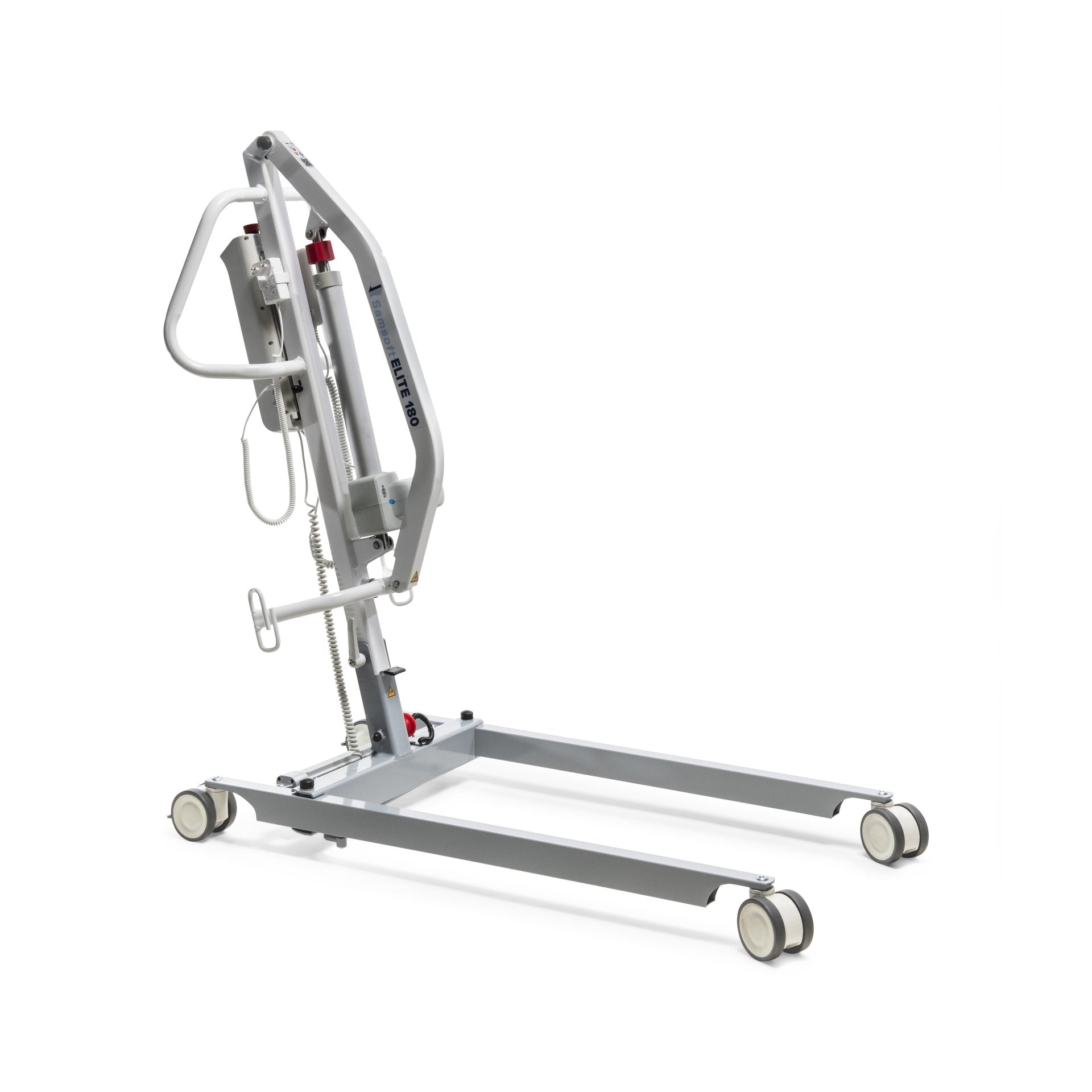

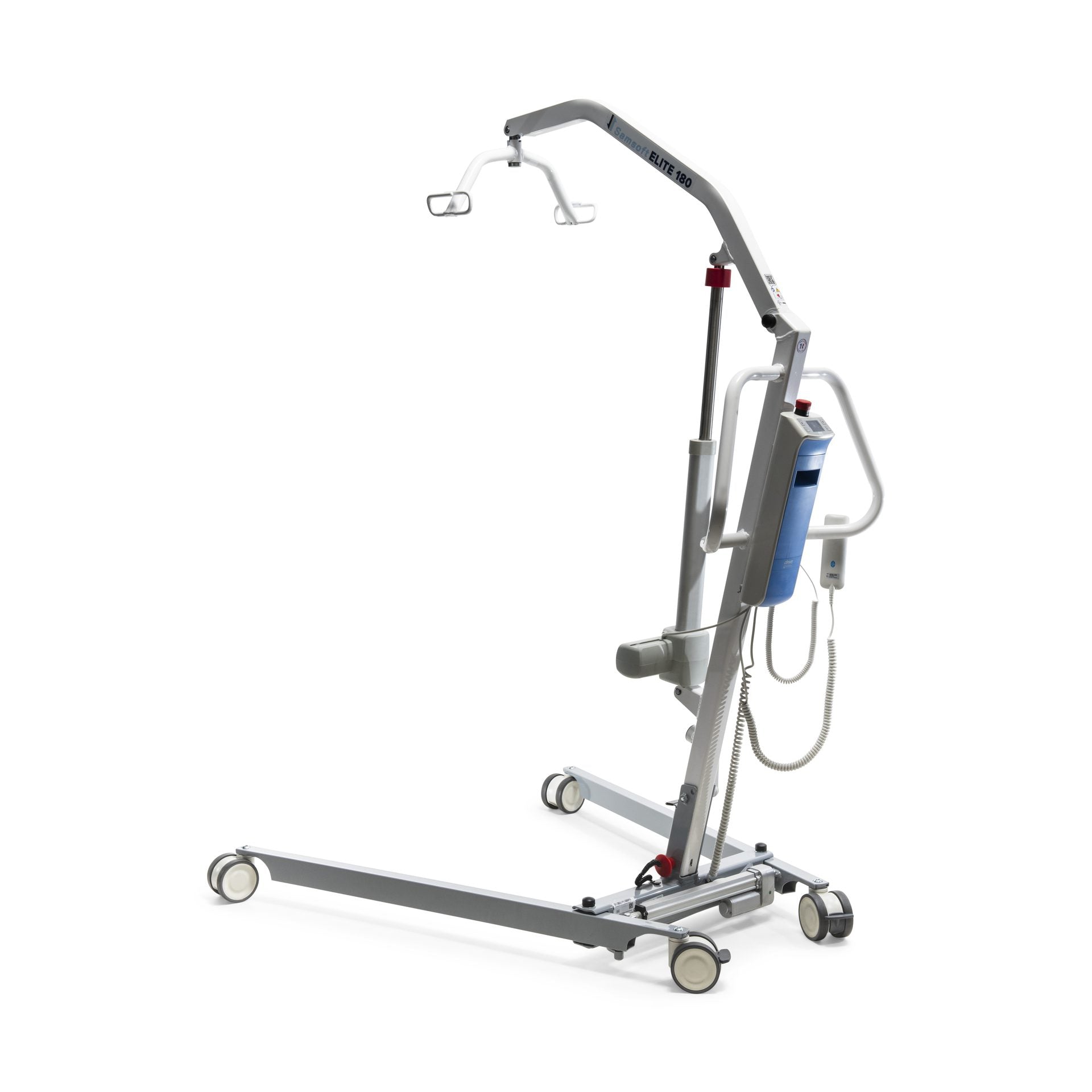

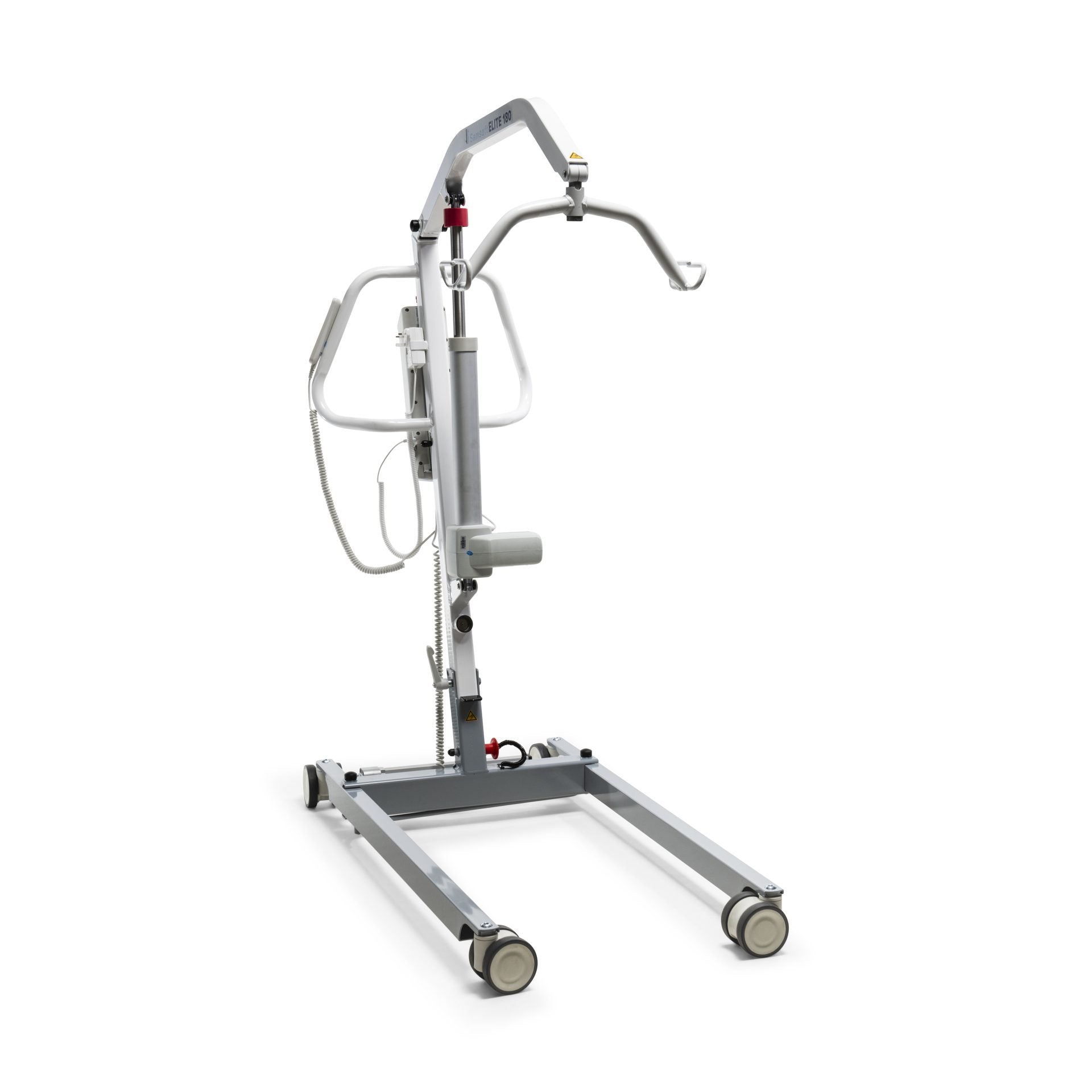

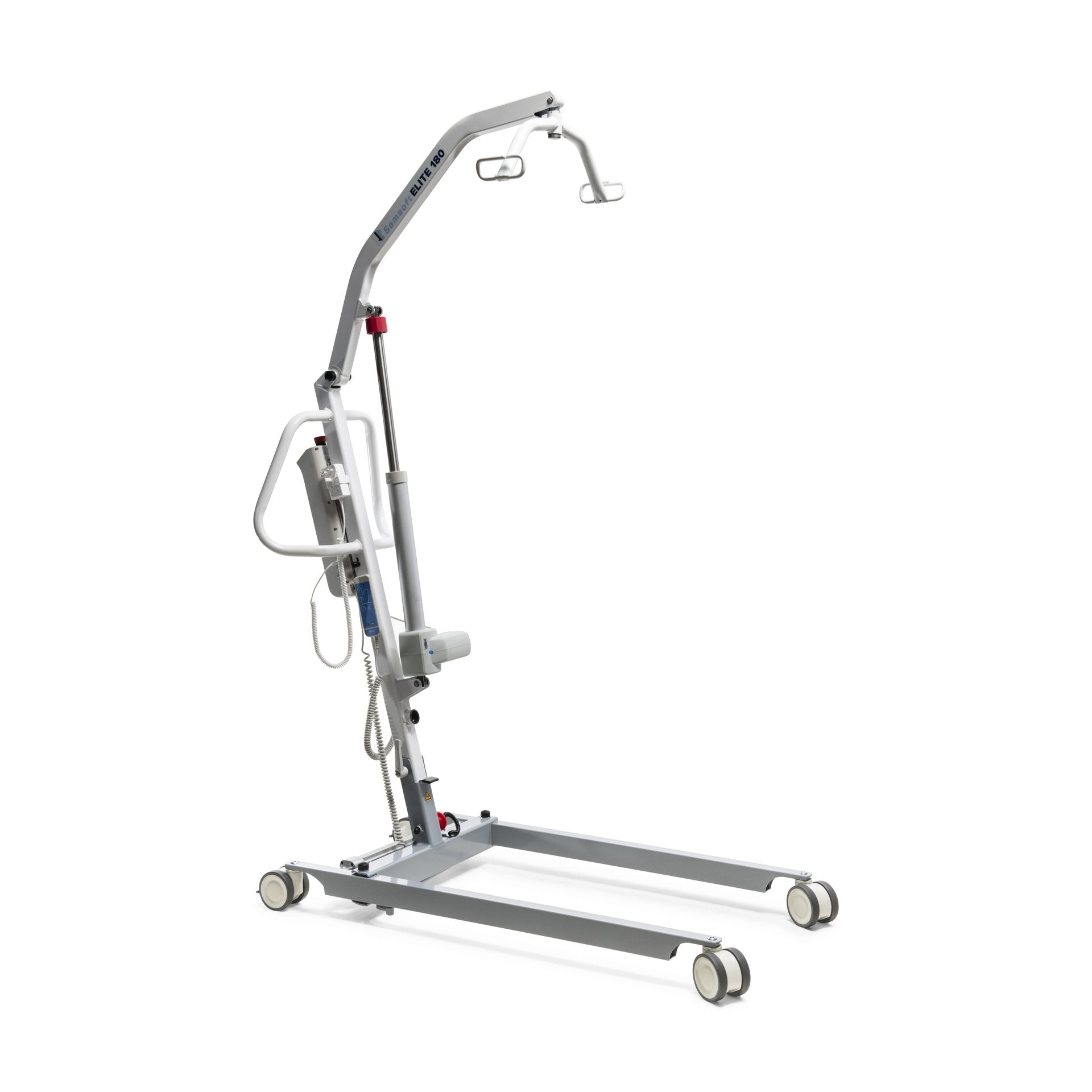

The Drive DeVilbiss Samsoft Elite 180 Electric Patient Hoist is a battery-powered mobile lifting aid designed to support transfers for people with reduced mobility. Suitable for domestic, residential care and professional care environments, its compact frame combines powered lifting with electrically adjustable legs.
Model SR3110200 has a maximum rated load of 180kg, including the patient and sling. A lifting range of 47–178cm helps accommodate transfers between appropriately assessed beds, chairs and floor-level positions.
Key features
Maximum rated load of 180kg, including the patient and sling

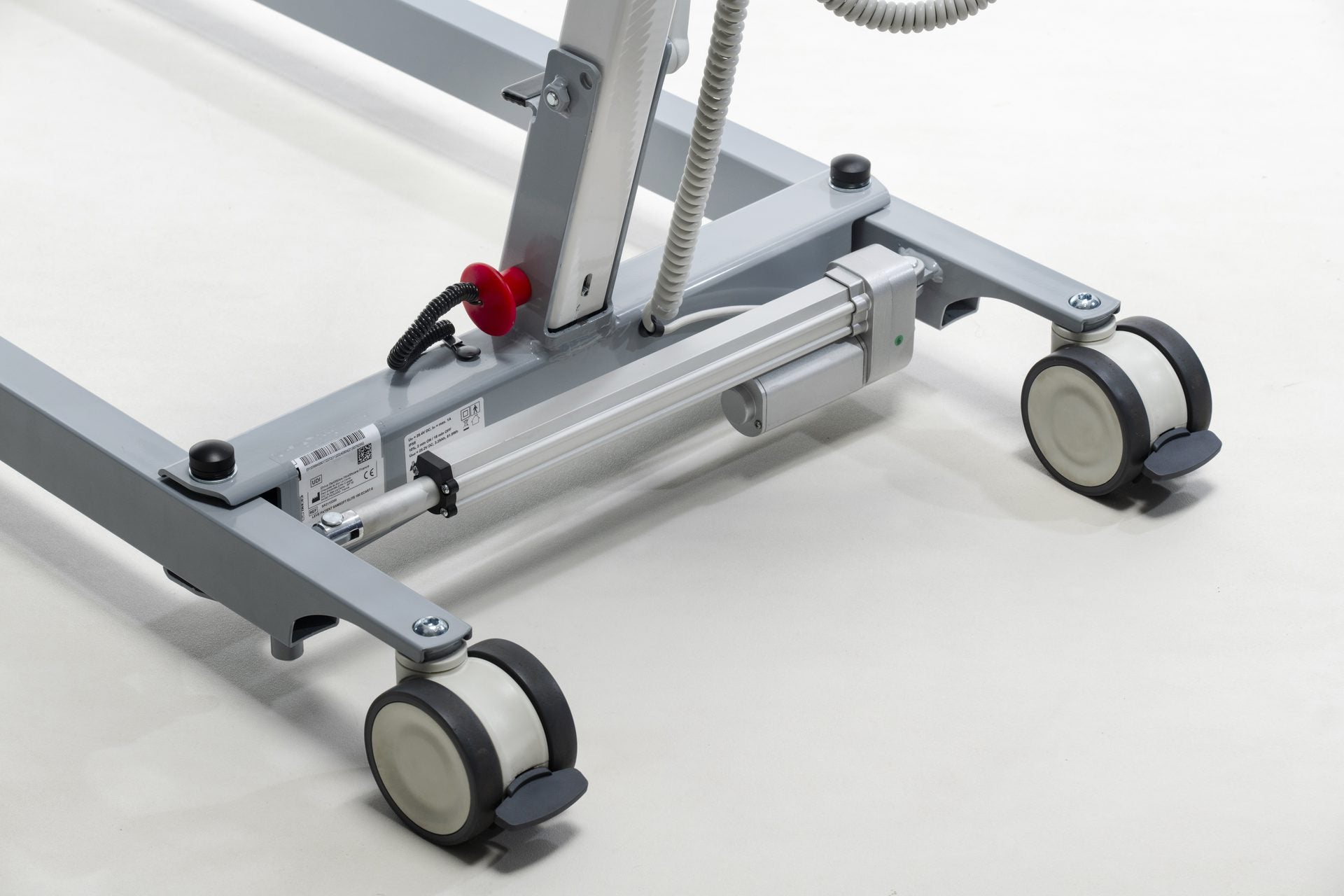

Electrically powered lifting and leg-opening functions
47–178cm lifting range

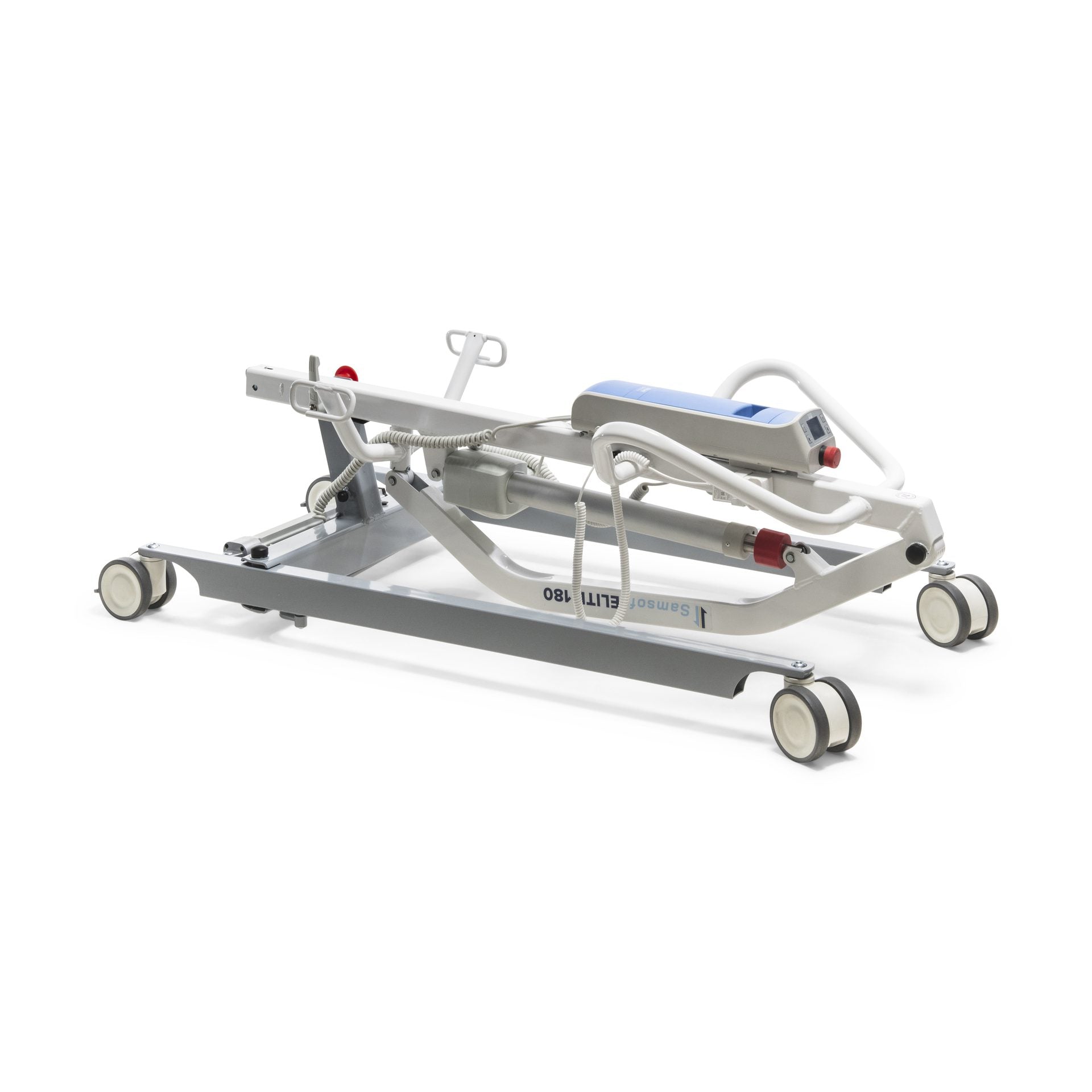

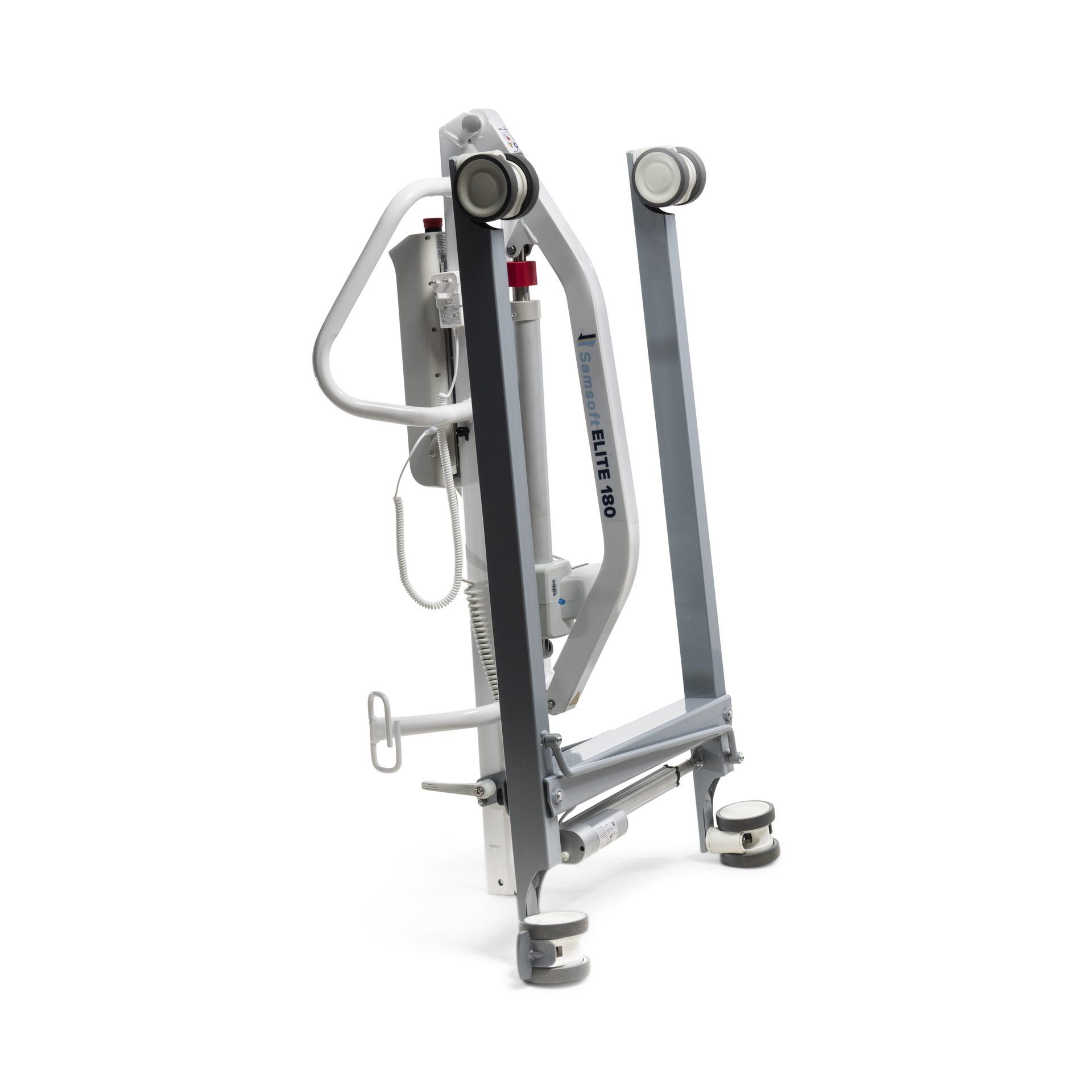

Tool-free folding mechanism for more convenient storage and transport
Compact base with an internal leg width of 48.8–112cm

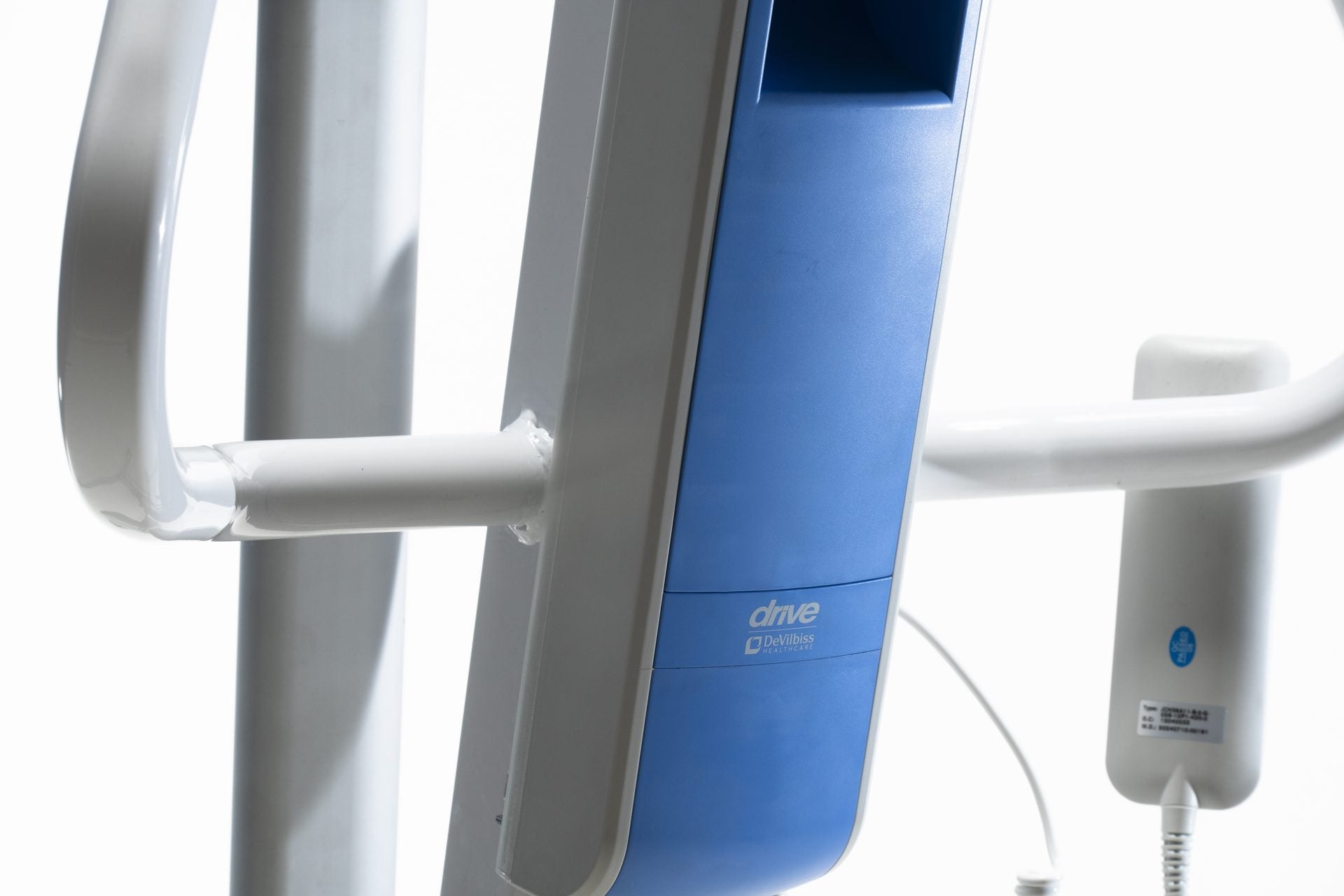

Large, multi-position push handle for comfortable positioning by the carer

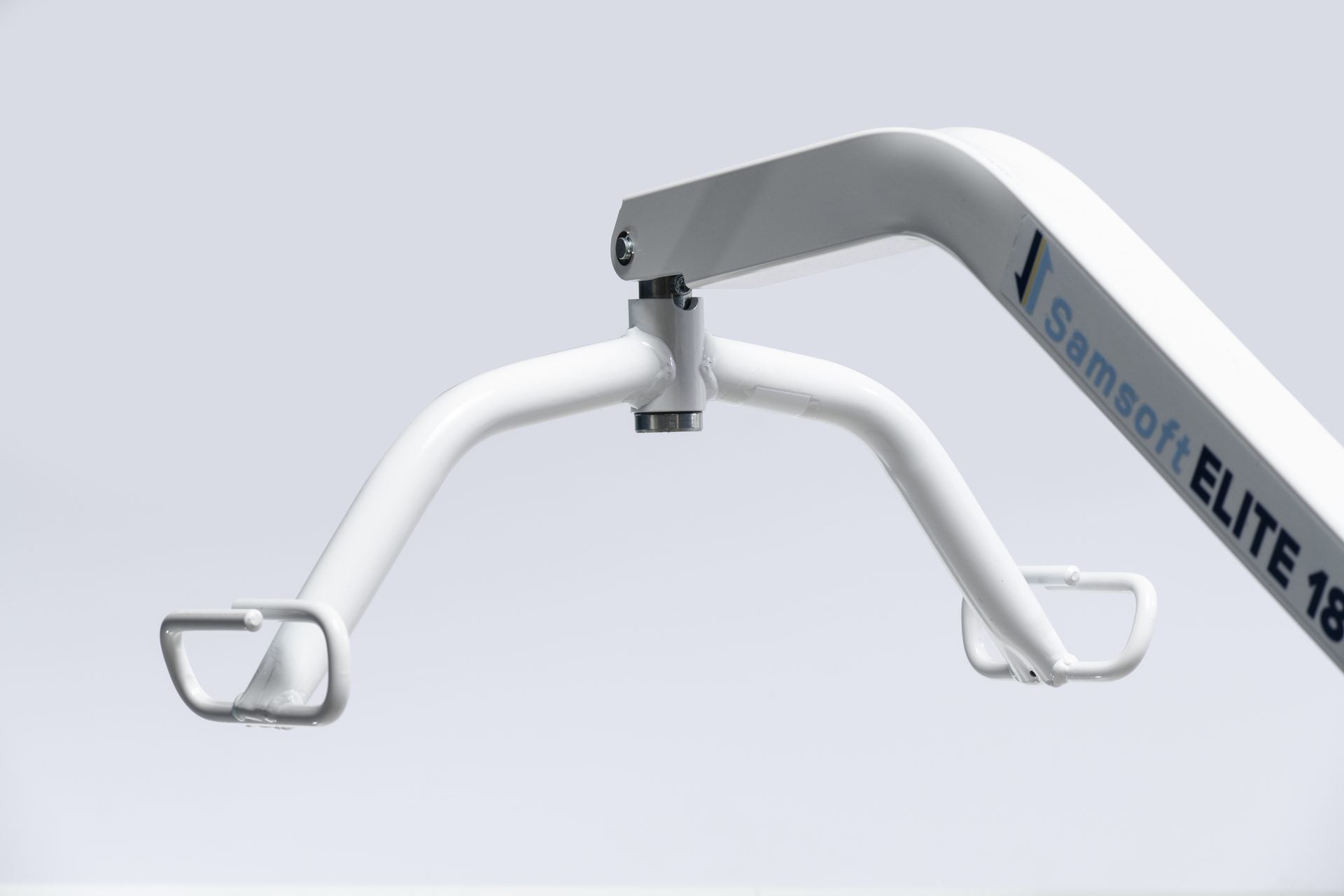

Curved standard spreader bar designed to support visibility during transfers
Magnetic spreader-bar lock for transport

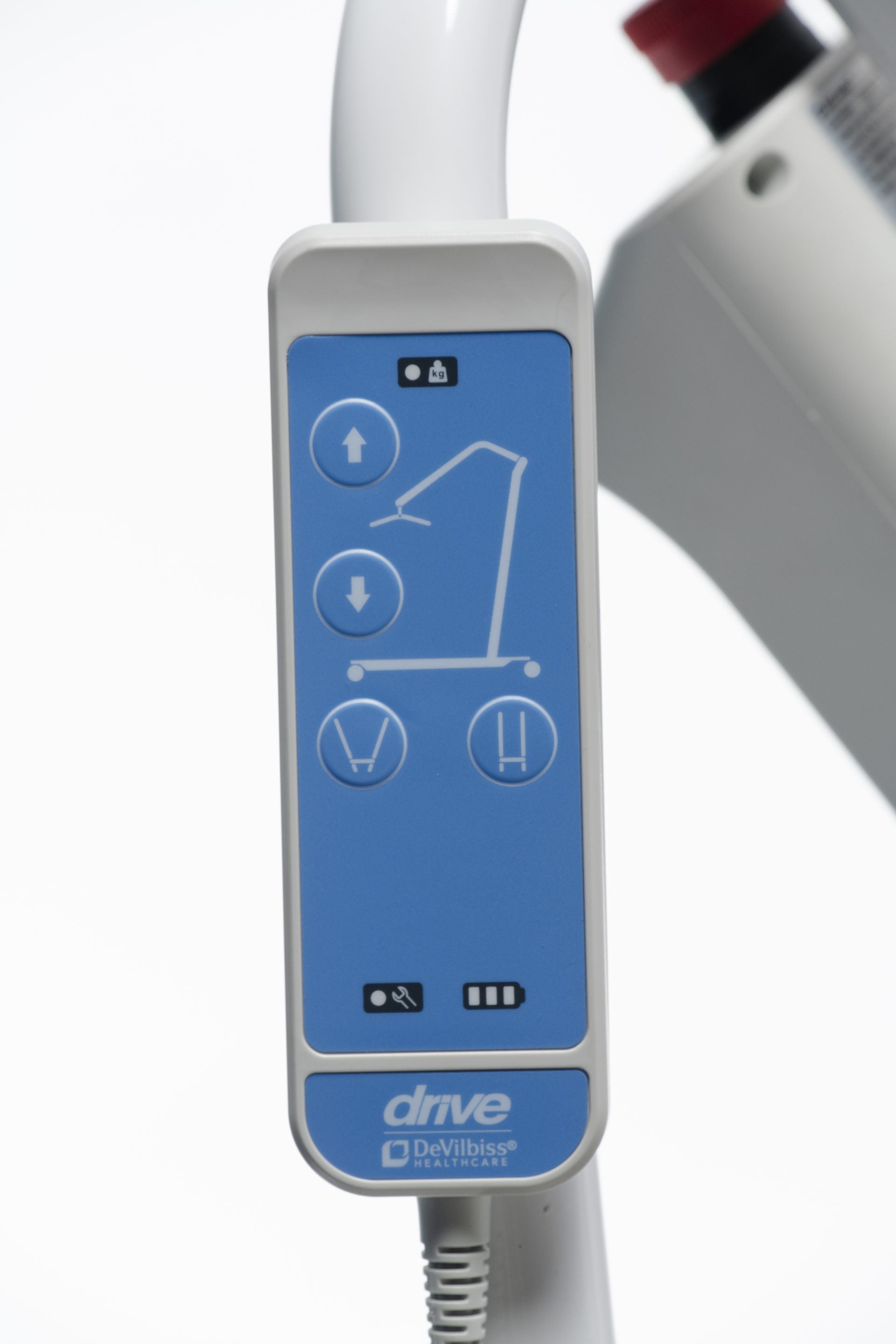

Magnetic handset for convenient placement between uses
Large braked castors for controlled positioning

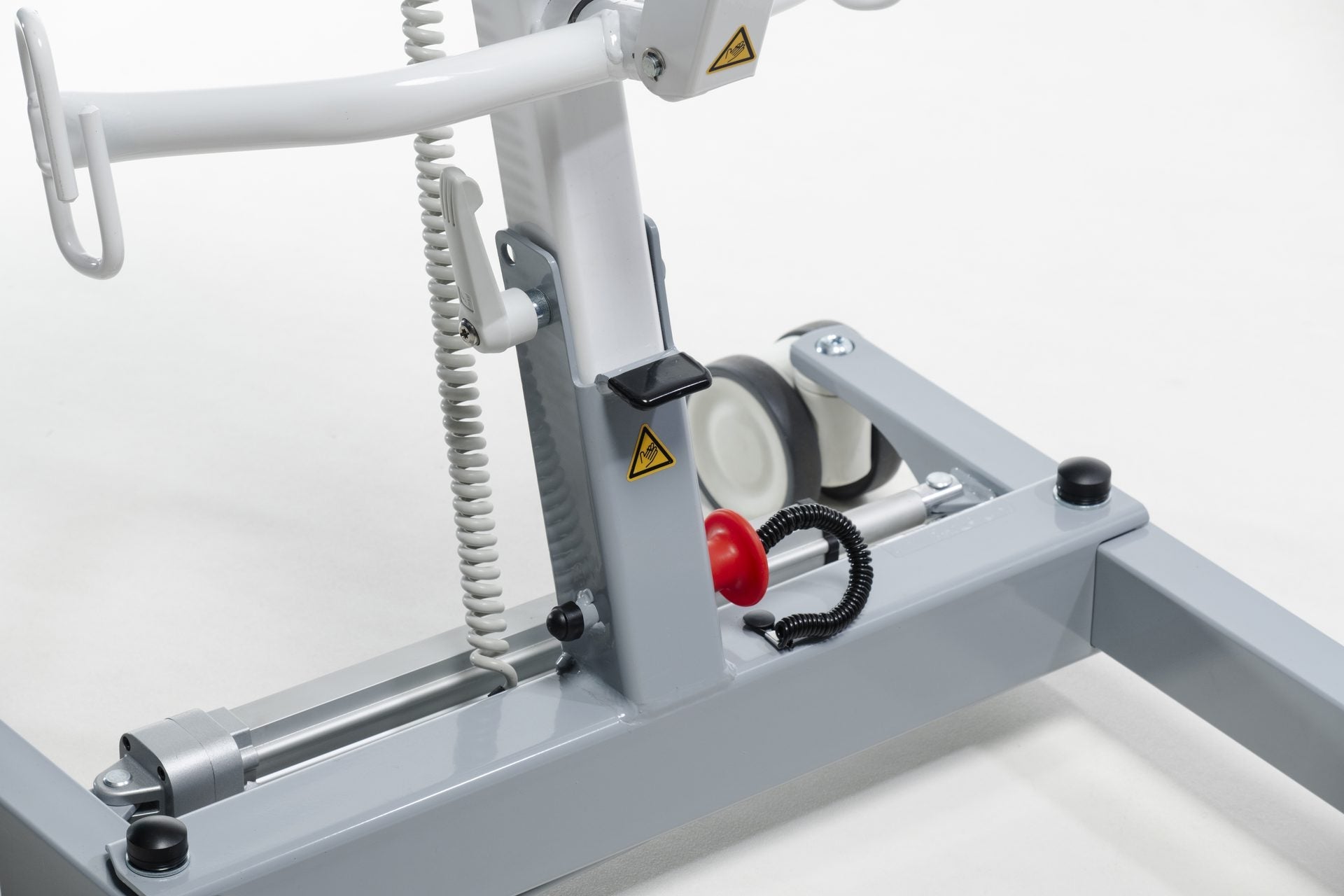

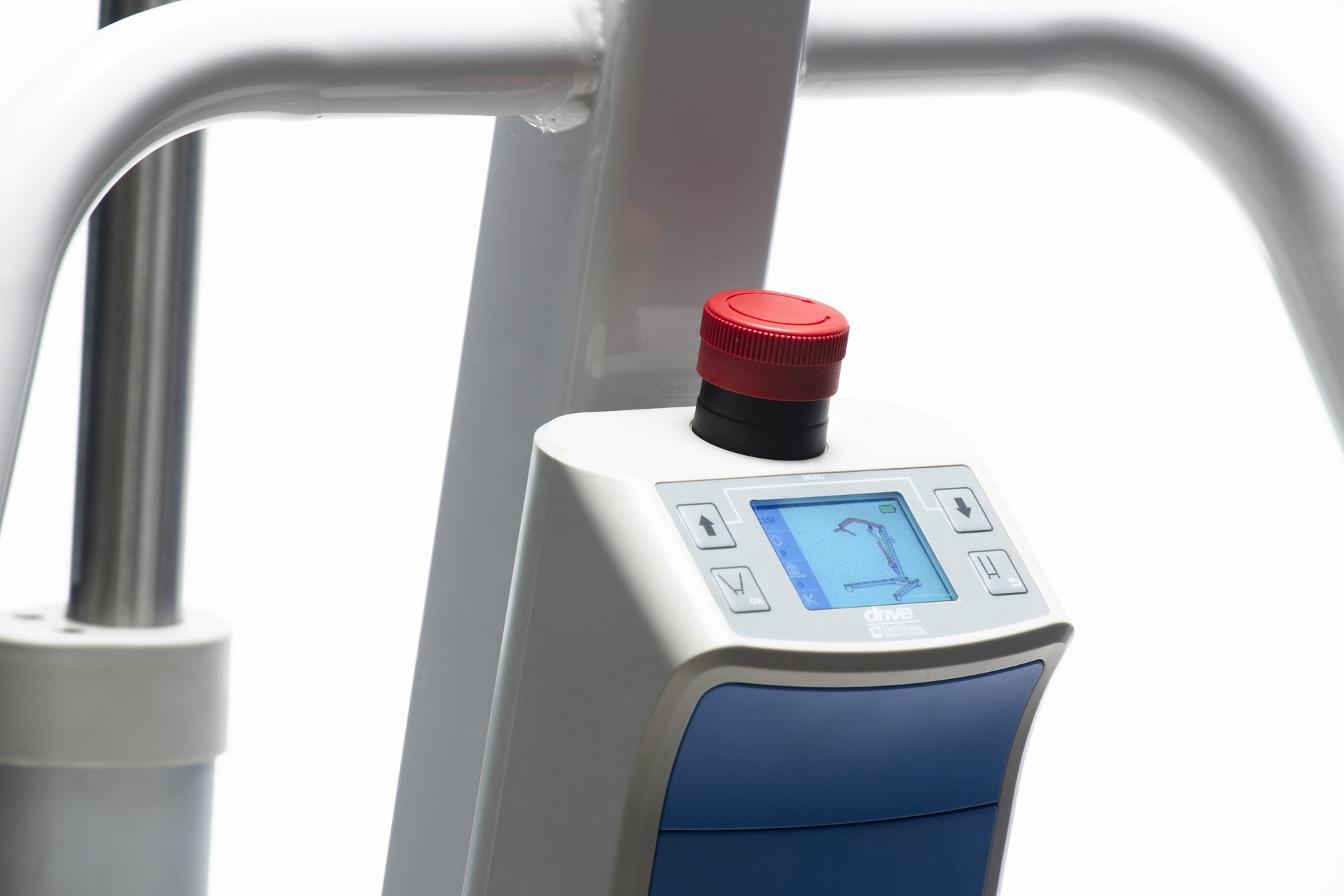

Emergency stop and manual emergency-lowering functions
Maintenance monitor based on elapsed months or completed lift cycles
Rechargeable lithium-ion battery
Product specifications
Brand
Drive DeVilbiss Healthcare
Model
Samsoft Elite 180
Manufacturer reference
SR3110200
Maximum rated load
180kg, including patient and sling
Lifting range
47–178cm
Overall length
133cm
Base width with legs closed
65cm
Internal leg width
48.8–112cm
Base frame height
12cm
Ground clearance
2.6cm
Turning diameter
143cm
Product weight
41.8kg including the standard spreader bar
Operating noise
Less than 55dB(A)
Manufacturer’s warranty
Structure and actuator: 5 years
Control box and handset: 2 years
Battery: 1 year
Important information
A patient sling is not included unless expressly stated. A compatible sling must be selected according to the individual’s needs, measurements and moving-and-handling assessment.
This hoist must only be operated by appropriately trained and competent persons. Before use, confirm that the hoist, sling, attachment method and transfer procedure are suitable for the individual. Always follow the manufacturer’s instructions, the person’s care plan and applicable inspection and maintenance requirements.
